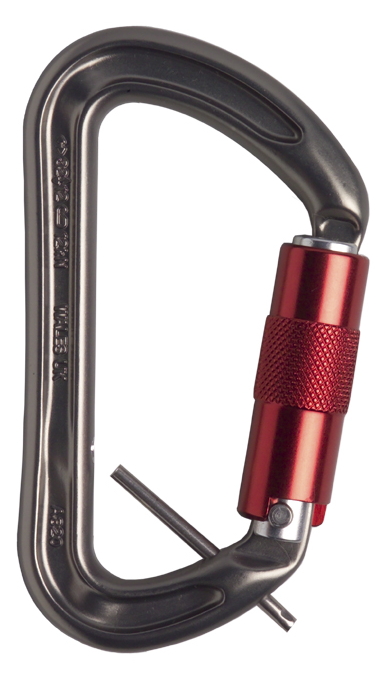

12mm Zodiac I Beam Twistlock Karabiner
A823 - 12mm Zodiac I Beam Alloy offset pattern Twistlock Karabiner, 18mm gate opening.
32kN MBL major axis, gate closed.
Outside dimensions are L 114mm W 65.5mm.
Each is marked with individual serialisation. Available with captivation pin if required.
The I Beam section is for increased strength to weight ratio. The Keylock clean nose is for snag free connection. Hot forged and fully heat treated aluminium for lightness and maximum strength. Anodised to BS12373-2001 Class 10E1 & sealed for corrosion protection.
650kg WLL. 32kN MBL (major axis gate closed) & 12kN MBL (Minor axis, gate closed).
Conformity
EN362:2004 Class T & EN12275:1998 Class B.
Specifications
- Manufacturer
:
- Weight: 79g
12mm Zodiac I Beam Twistlock Karabiner
Product code:4295
Availability:
