Description

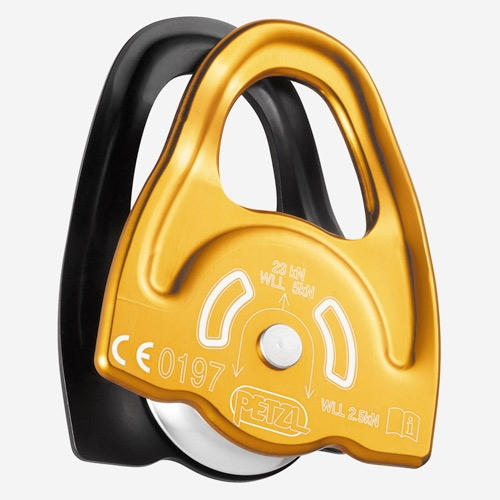

The flat, compact and lightweight MINI can handle big loads, but is small enough to go almost anywhere or be carried on the harness.
It features special side plates designed for use with a Prusik friction hitch in lightweight progress capture systems or as a component of a hauling system. The sheave is mounted on sealed ball bearings for excellent effeciency whilst the side plate profile allows the knot to be released when it comes against the pulley.
Min Rope Diameter: 7mm
Max Rope Diameter: 11mm
Sheave Diameter: 25mm
Effeciency: 91%
Working Load: 2.5kN x 2 = 5kN
MBL: 11.5kN x 2 = 23kN
Side plates and sheave constructed from Aluminium.
